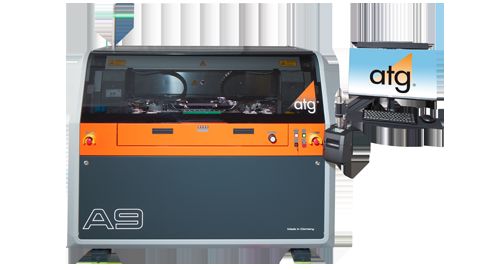

A9
- Productivity 8 test heads with fastest linear drive technology
- Stability Highly flexible shuttle system with tension option
- Flexibility Advanced back drill and active diode test capability
Description
The A9 is our fastest PCB test system with a new powerful drive technology and granite base to ensure high accuracy. Even mid-size quantities of several 100 products can be tested efficiently, avoiding the need for fixture building.
The A9 has an outstanding test speed of 25 contacts per second per test head and improved motion control with highest accuracy for advanced test functionalities like BackDrill test and active component testing.
Specification
|
8 test heads |
|
|
Linear motor drives for X-, phi- and Z-axis |
|
|
Granit base |
|
|
Max. test area |
610 mm x 510 mm (24" x 20") |
|
Max. product size |
640 mm x 535 mm (25.2" x 21.0") |
|
Test speed |
up to 220 TP/sec (depending on test method) |
|
4 high-resolution color XGA-cameras |
|
|
Smallest pad/pitch A9 |
35 µm*(1,4 mil) / 75 µm (3 mil) (* glass calibration) |
|
Soft touch contacting |
|
|
Micro short detection (MSD®) |
|
|
Pneumatic clamping / tension frame |
|
|
Options |
Embedded component test, Test floor integration with Universal Grid systems, High Speed Kelvin 4 wire test up to 300 mA*, LaTest® (Latent defect) and BackDrill testing |
